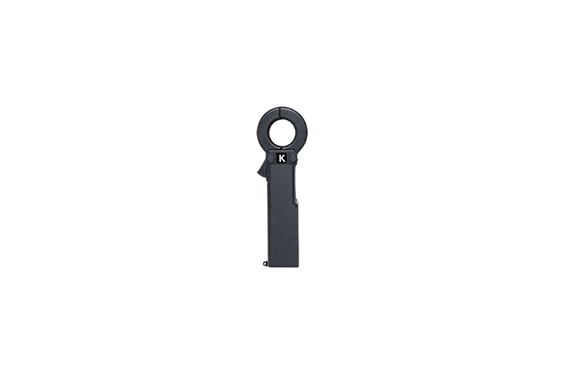

Multi CT Series Clamp-on AC Current Sensor
Manufacturer: Multi Measuring Instrument Co., Ltd.
Model: CT-23
Features
Compact, general-purpose alternating current measurement CT terminal feeder measurement
Specifications
| Applicable current | AC 1A～200A |
|---|---|
| Maximum allowable current | AC 240A |
| Nominal Current Ratio | 2000:1 |
| Example output | AC 99.3ｍV±3mV（50A/4Ω） |
| Application frequency | 10Hz～500Hz |
| Wire diameter that can be installed | Max φ23mm |
| Withstand voltage | AC 2200V/1 min (between exterior case ~ output) |
| Insulation resistance | DC 500V/100MΩ or more (between exterior case ~ output) |
| Temperature and humidity | -10~60°C 80%RH or less (but not condensing) |
| Output Leads | Approx. 20cm parallel line (0.3sq) |
| Dimensions and weight | W48×H146×D20mm Approx. 70g |
