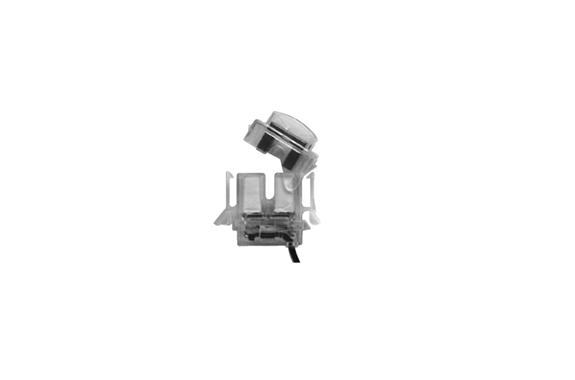

Multi CTF-03 Pulse Detection Current Sensor
Manufacturer: Multi Measuring Instruments Co., Ltd.
Model: CTF-03
Features
Ideal for checking operation with pulse current detection and detecting current and disconnection in equipment Wide range measurement of AC 0.1mA ~ 8A Ultra-compact and ultra-light with an inner diameter of 3mm Highly sensitive type that is not affected by external influences
Specifications
| Applicable current | AC 0.1mA～8A |
|---|---|
| Maximum allowable current | 10Arms continuous |
| Nominal Current Ratio | 800:1 |
| Application frequency | 50 Hz / 60 Hz |
| Wire diameter that can be installed | φ3mm |
| Example output | AC 12.4mV±5% （AC 1A/10Ω） |
| Operating Circuit Voltage | AC 100V or less |
| Insulation resistance | DC 100V/100MΩ or more (between outer case ~ output) |
| Temperature and humidity | -10~60°C 80%RH or less However, no condensation |
| Flame retardant grade | Autodigestive PC |
| Output Leads | 15cm |
| Dimensions and weight | W28×H24×D12mm Approx. 8g |
