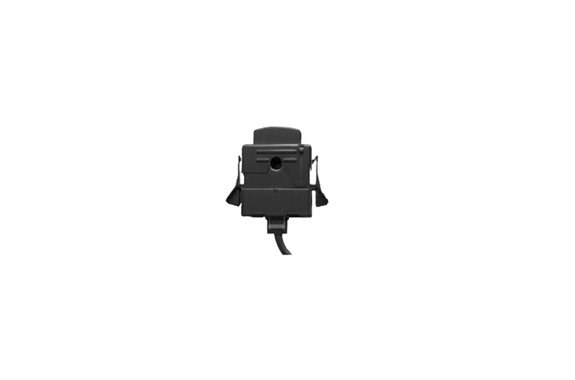

Multi CTF-05 Pulse detection current sensor
Manufacturer: Multi Measuring Instruments Co., Ltd.
Model: CTF-05
Features
Current Pulse Sensor for Power Demand Meter
Specifications
| Applicable current | AC 1mA～10A |
|---|---|
| Maximum allowable current | 15Acontinuous |
| Nominal Current Ratio | 800:1 |
| Application frequency | 50 Hz / 60 Hz |
| Wire diameter that can be installed | φ5mm |
| Example output | AC12.4mV±3%（AC1A/10Ω） |
| Operating Circuit Voltage | Low voltage circuits (coated wires) below AC 600V |
| Insulation resistance | DC500V/100MΩ or more (between outer case ~ output) |
| Temperature and humidity | -10~75°C 80%RH or less However, no condensation |
| Output Leads | 2m |
| Dimensions and weight | W49×H42.5×D22mm approx. 95g |
