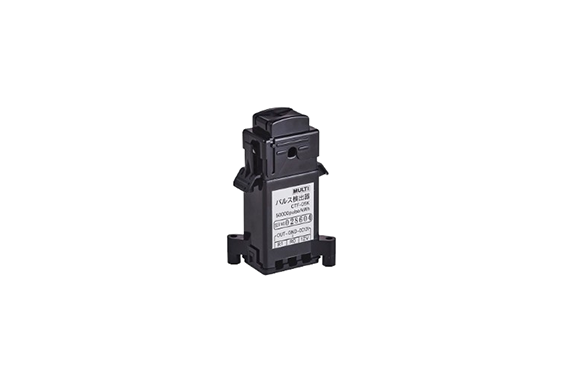

Multi CTF-05K Pulse Detection Current Sensor
Manufacturer: Multi Measuring Instruments Co., Ltd.
Model: CTF-05K
Features
For Power Pulse Measurement Open Collector Output Split Demand Meter Current Pulse Measurement
Specifications
| Wire diameter that can be installed | Max φ5mm |
|---|---|
| Input format | 50,000pulse/kWh |
| Pulse current | DC ±8mA～±25mA |
| Pulse width | 10 msec or more |
| Pulse interval | 20 msec or more |
| Rise and fall time | Within 2msec |
| Operating current value | 8mA |
| output | Open Collector (L-level in operation) |
| Current Consumption | Approx. 5mA |
| Supply voltage | DC12V±10% |
| Withstand voltage | AC2200V, 1 minute (between through hole ~ output) |
| Insulation resistance | DC500V/100MΩ or more (between outer case ~ output) |
| Temperature and humidity | -10~70°C 80%RH or less (but not condensing) |
| Output section | M3×3 (Power Supply, Output, COM) |
| Dimensions and weight | W33×H79×D22mm approx. 60g |
