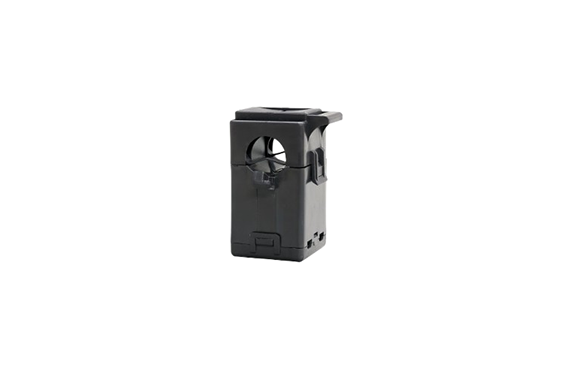

Multi CTF-100A Split AC Current Sensor
Manufacturer: Multi Measuring Instruments Co., Ltd.
Model: CTF-100A
Features
Ideal for feeder current measurement Wire stopper prevents falling No special connector required for terminal output Flame retardant safety design with open protection element
Specifications
| Applicable current | AC0.1～100A(50/60Hz) |
|---|---|
| Maximum allowable current | AC200Armscontinuous |
| Nominal Current Ratio | 3000:1 |
| Application frequency | 10Hz～5KHz |
| Wire diameter that can be installed | Up to 16mm×14.5mm |
| accuracy | ±1.0%/Rated Current |
| Phase difference | 0.7°±0.5° (10Ω/100A/50・60Hz) |
| Open protection | 7.5V Clamping Element |
| Operating Circuit Voltage | AC600V or less |
| Withstand voltage | AC2200V/1 minute (between outer case ~ output) |
| Insulation resistance | DC500V/100MΩ or more (between outer case ~ output) |
| Temperature and humidity | -10~60°C 80%RH or less (but not condensing) |
| Reference Standards | RoHS compliant |
| Output Terminals | M3 mounting screws |
| Dimensions and weight | W29.5×H55×D30.5mm Approx. 85g |
