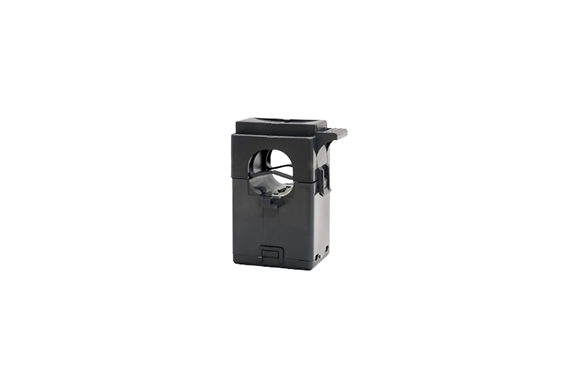

Multi CTF-100T Split AC Low Voltage Current Transformer
Manufacturer: Multi Measuring Instrument Co., Ltd.
Model: CTF-100T
Features
- 1A output type for general-purpose instruments
- Clamp type for easy installation
- Wire stopper prevents falling
- No special connector required for terminal output
- Flame retardant safety design with open protection element
Specifications
| Applicable current | AC1～100A(50/60Hz) |
|---|---|
| Maximum allowable current | AC120Armscontinuous |
| Example output | AC1A (AC100A) |
| Rated Burden (VA) | 0.2VA |
| Application frequency | 50/60Hz |
| Wire diameter that can be installed | Up to 24mm×24mm |
| accuracy | ±1.0% In |
| Phase difference | ±1.5° In |
| Operating Circuit Voltage | AC600V or less |
| Withstand voltage | AC2200V/1 minute (between outer case ~ output) |
| Insulation resistance | DC500V/100MΩ or more (between outer case ~ output) |
| Temperature and humidity | -10~60°C 80%RH or less (but not condensing) |
| Output section | M3 Terminal |
| Dimensions and weight | W45×H76×D35.5mm Approx. 162g |
