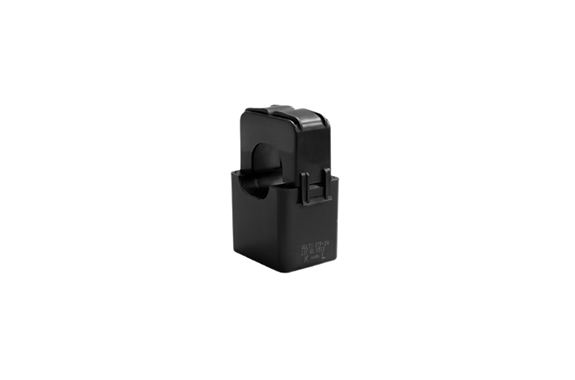

Multi CTF-24 Split AC Current Sensor
Manufacturer: Multi Measuring Instruments Co., Ltd.
Model: CTF-24
Features
for current and power measurement split type Current measurement of the main circuit of the distribution board
Specifications
| Applicable current | AC0.1～200A(50/60Hz) |
|---|---|
| Maximum allowable current | AC300Armscontinuous |
| Nominal Current Ratio | 3000:1 |
| Application frequency | 10Hz～5KHz |
| Wire diameter that can be installed | Max φ24mm |
| accuracy | ±1.0%/Rated Current |
| Phase difference | 0.3°±0.5° (10Ω/200A/50・60Hz) |
| Open protection | 7.5V Clamping Element |
| Operating Circuit Voltage | AC600V or less |
| Withstand voltage | AC2200V/1 minute (between outer case ~ output) |
| Insulation resistance | DC500V/100MΩ or more (between outer case ~ output) |
| Temperature and humidity | -10~60°C 80%RH or less (but not condensing) |
| Reference Standards | RoHS compliant |
| Output Leads | Approx. 15cm (AWG22 equivalent) |
| Dimensions and weight | W48.4×H69.5×D35.5mm Approx. 170g |
