Multi Measuring Instruments Co.

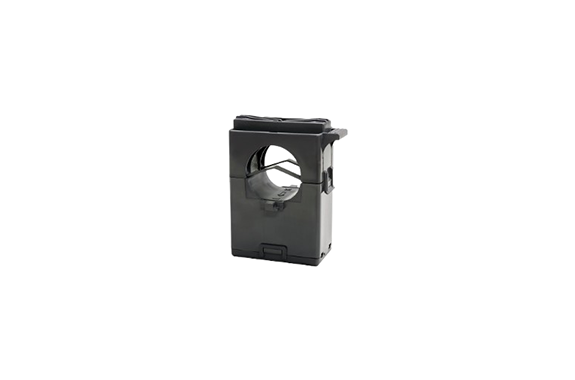

Multi CTF-500DC AC and Reciprocal (PWM, Inverter, etc.)
Manufacturer: Multi Measuring Instruments Co., Ltd
Model: CTF-500DC
Features
DC/AC 500A/DC~10kHz for
DC/Inverter Current Measurement of
Main Lines
Specifications
| Rated current | AC/DC 500A |
|---|---|
| Applicable current | ±25～±500A |
| Maximum allowable current | AC/DC 750Acontinuous |
| Output Voltage | ±4V/Rated Current (±8mV/A) |
| Application frequency | DC～10kHz |
| Wire diameter that can be installed | Max φ35mm |
| accuracy | ±1.0%/Rated Current |
| Supply voltage | ± 12V±5% (both power supplies) |
| Current Consumption | Approx. 7mA |
| Response speed | 3μs |
| Temperature coefficient | ±0.1% / ℃ |
| Operating Circuit Voltage | DC1000V or less, AC500V or less (insulated coated wires) |
| Withstand voltage | AC 2000V / 1 minute (between outer case ~ output) |
| Insulation resistance | DC 500V/100MΩ or more (between exterior case ~ output) |
| Temperature and humidity | -10~60°C 80%RH or less (but not condensing) |
| Reference Standards | RoHS compliant |
| Output Leads | 33cm Red: +12V Black: -12V White: Output (OUT) Green: COM |
| Dimensions and weight | W62.5×H94×D35.5mm approx. 270g |
| caution | The output may be affected by various environments, so it is recommended to use it at least 5% of the rated level. |
