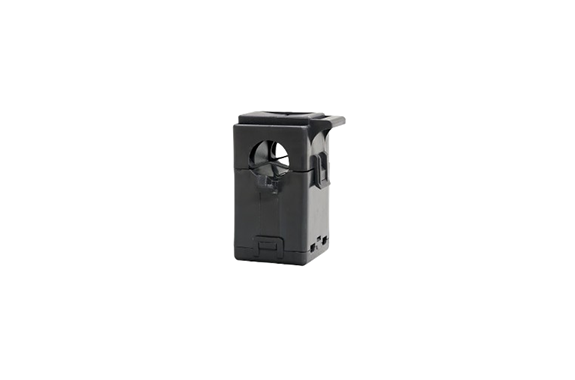

Multi CTF-50DC-U24V AC and Reciprocal (PWM, Inverter, etc.)
Manufacturer: Multi Measuring Instruments Co., Ltd
Model: CTF-50DC-U24V
Features
DC/AC 50A/DC~10kHz for
DC/Inverter Current Measurement of
Terminal Feeder
Specifications
| Rated current | AC/DC 50A |
|---|---|
| Applicable current | AC/DC ±2.5～±50A |
| Maximum allowable current | AC/DC 75Acontinuous |
| Output Voltage | ±4V/Rated Current (9V±4V between OUT-0V, 0V±4V between OUT-GND) |
| Application frequency | DC ～10kHz |
| Wire diameter that can be installed | Maximum φ14.5mm |
| accuracy | ±1.0%/Rated Current |
| Supply voltage | +24V (Single Supply) |
| Current Consumption | Approx. 7mA |
| Temperature coefficient | ±0.1% / ℃ |
| Operating Circuit Voltage | AC/DC 500V or less (but covered wires) |
| Withstand voltage | AC 2000V / 1 minute (between outer case ~ output) |
| Insulation resistance | DC 500V/100MΩ or more (between exterior case ~ output) |
| Temperature and humidity | -10~60°C 80%RH or less However, no condensation |
| Reference Standards | RoHS compliant |
| Output Leads | 33cm (Red: +24V, Black: 0V, White: Output OUT, Green: Output GND) |
| Dimensions and weight | W29.5×H55×D30.5mm Approx. 70g |
| caution | The output may be affected by various environments, so it is recommended to use it at least 5% of the rated level. |
