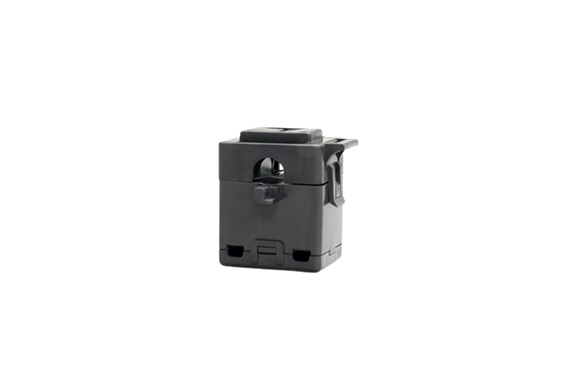

Multi CTF-5A Split AC Current Sensor
Manufacturer: Multi Measuring Instruments Co., Ltd.
Model: CTF-5A
Features
Ideal for small current measurement of 5A circuits, etc. Wire stopper prevents falling Requires no special connector for terminal output Flame retardant safety design with
open protection element.
Specifications
| Applicable current | AC0.01～5A(50/60Hz) |
|---|---|
| Maximum allowable current | AC100Armscontinuous |
| Nominal Current Ratio | 3000:1 |
| Application frequency | 10Hz～5KHz |
| Wire diameter that can be installed | Up to 10mm×7.9mm |
| accuracy | ±1.0%/Rated Current |
| Phase difference | 1.0°±0.5°(10Ω/5A/50Hz) |
| 0.8°±0.5°(10Ω/5A/60Hz) | |
| Open protection | 7.5V Clamping Element |
| Operating Circuit Voltage | AC600V or less |
| Withstand voltage | AC2200V/1 minute (between outer case ~ output) |
| Insulation resistance | DC500V/100MΩ or more (between outer case ~ output) |
| Temperature and humidity | -10~60°C 80%RH or less (but not condensing) |
| Reference Standards | RoHS compliant |
| Output Terminals | M3 mounting screws |
| Dimensions and weight | W33×H41.3×D25.3mm Approx. 45g |
