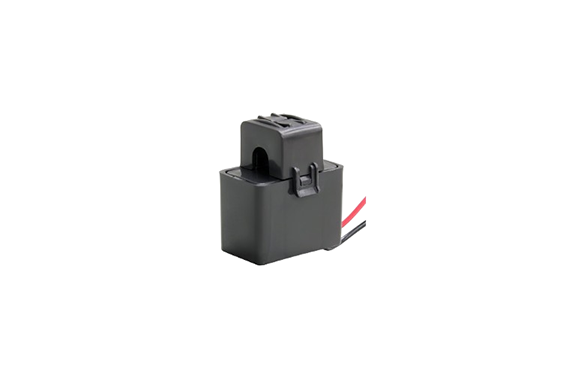

Multi CTF-6 Split AC Current Sensor
Manufacturer: Multi Measuring Instruments Co., Ltd.
Model: CTF-6
Features
Ultra-compact and wide measurement of 0.1~30A AC Excellent output linearity from small current range to large current Compact storage in distribution boards Compatible with branch slim breakers for household distribution boards
Specifications
| Applicable current | AC 0.1～30A(50/60Hz) |
|---|---|
| Maximum allowable current | AC 50Armscontinuous |
| Nominal Current Ratio | About 3000:1 |
| Application frequency | 10Hz～5kHz |
| Wire diameter that can be installed | Max φ6mm |
| accuracy | ±1.0%/rated current (at RL=10Ω AC30A 50/60Hz) |
| Phase difference | 2.5°±0.5°(10Ω/30A/50Hz) 2.1°±0.5°(10Ω/30A/60Hz) |
| Open protection | 7.5V Clamping Element |
| Operating Circuit Voltage | AC 600V or less |
| Withstand voltage | AC 2200V/1 min (between exterior case ~ output) |
| Insulation resistance | DC 500V/50MΩ or more (between exterior case ~ output) |
| Temperature and humidity | -10~60°C 80%RH or less (but not condensing) |
| Reference Standards | RoHS compliant |
| Output Leads | Approx. 20cm (AWG24 equivalent) |
| Dimensions and weight | W19.3×H31×D26.4mm Approx. 22g |
