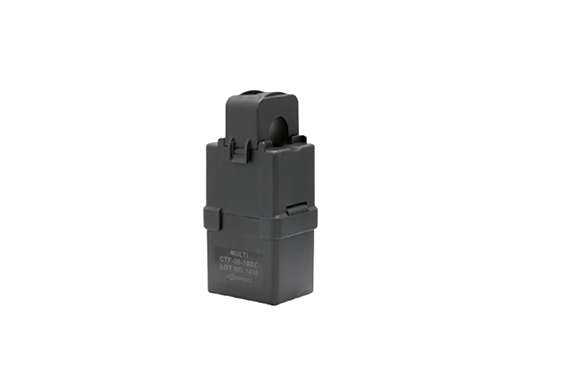

Multi CTF-60-10DC Small, space-saving, low-cost DC current sensor
Manufacturer: Multi Measuring Instruments Co., Ltd.
Model: CTF-60-10DC
Features
・Space-saving design with a width of 25.9 mm
・Split type that is easy to retrofit and has a CT inner diameter of φ10 mm
・Lineup of two models, DC30A and DC60A
・Response performance of less than 10 μsec with a 0→ rated current
・Low cost and ideal for string monitoring of solar cells
Specifications
| Rated current | DC 60A |
|---|---|
| Maximum allowable current | DC 66A |
| Output Voltage | +60A Input DC +4.5V |
| 0A Input DC +2.5V | |
| -60A Input DC +0.5V | |
| Wire diameter that can be installed | Maximum φ10mm |
| accuracy | ±2.0%F.S |
| Temperature Counting | ±0.1%/℃ |
| Response speed | 0→ Rated Current of 10 μsec or less |
| Supply voltage | +5V±5% (single supply) |
| Withstand voltage | AC 2000V/1 min (between outer case ~ output) |
| Insulation resistance | DC 500V/100MΩ or more (between exterior case ~ output) |
| Temperature and humidity | -10~65°C 85%RH or less (but not condensing) |
| Reference Standards | RoHS compliant |
| Output Leads | 20cm (uncut) |
| wiring | Red: Power +5V White: Output OUT Shield: Power 0V, Output GND |
| Dimensions and weight | W25.9×H65.2×D31.1mm approx. 36g |
