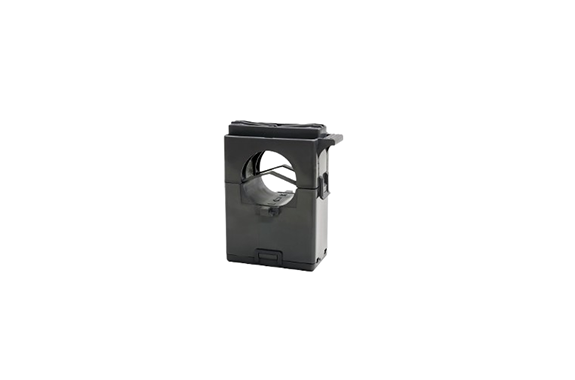

Multi CTF-600A Split AC Current Sensor
Manufacturer: Multi Measuring Instruments Co., Ltd.
Model: CTF-600A
Features
Ideal for measuring current on main lines Wire stopper prevents falling No special connector required for terminal output Safety design with open protection element and flame retardant
Specifications
| Applicable current | AC1～600A(50/60Hz) |
|---|---|
| Maximum allowable current | AC800Armscontinuous |
| Nominal Current Ratio | 9000:1 |
| Application frequency | 10Hz～5KHz |
| Wire diameter that can be installed | Up to 37mm×35.5mm |
| accuracy | ±1.0%/Rated Current |
| Phase difference | 0°±0.5° (10Ω/600A/50・60Hz) |
| Open protection | 7.5V Clamping Element |
| Operating Circuit Voltage | AC600V or less |
| Withstand voltage | AC2200V/1 minute (between outer case ~ output) |
| Insulation resistance | DC500V/100MΩ or more (between outer case ~ output) |
| Temperature and humidity | -10~60°C 80%RH or less (but not condensing) |
| Reference Standards | RoHS compliant |
| Output Terminals | M3 mounting screws |
| Dimensions and weight | W62.5×H94×D35.5mm Approx. 360g |
