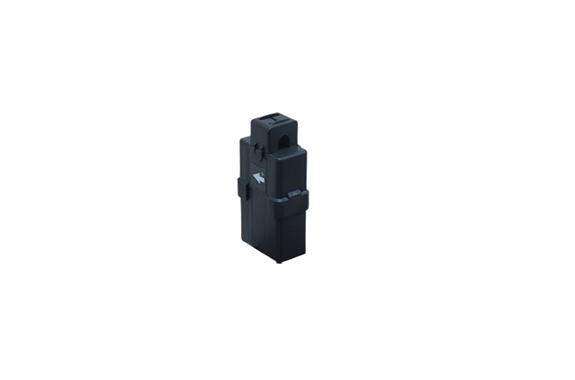

Multi CTF-6DC Small, space-saving, low-cost DC current sensor
Manufacturer: Multi Measuring Instruments Co., Ltd.
Model: CTF-6DC
Features
・Space-saving design with a width of 19.3mm
・CT inner diameter φ6mm
with a split type that is easy to retrofit ・Can measure up to 30A
DC ・Response performance of less than 10μsec at 0→30A
・Low cost and ideal for string monitoring of solar cells
Specifications
| Rated current | DC30A |
|---|---|
| Maximum allowable current | DC33A |
| Output Voltage | +4.5V at +30A input +2.5V at 0A input |
| Wire diameter that can be installed | Max φ6mm |
| accuracy | ±2.0%/Rated Current |
| Temperature coefficient | ±0.1%/℃ |
| Response speed | Approximately 10 μs at 0→30A |
| Supply voltage | +5V±5% (single supply) |
| Withstand voltage | AC2000V/1 minute (between outer case ~ output) |
| Insulation resistance | DC500V/100MΩ or more (between outer case ~ output) |
| Temperature and humidity | -10~65°C 85%RH or less (but not condensing) |
| Reference Standards | RoHS compliant |
| Output Leads | 20cm (uncut) |
| wiring | Red: Power +5V White: Output OUT Shield: Power 0V, Output GND |
| Dimensions and weight | W19.3×H59×D30.5mm Approx. 23g |
