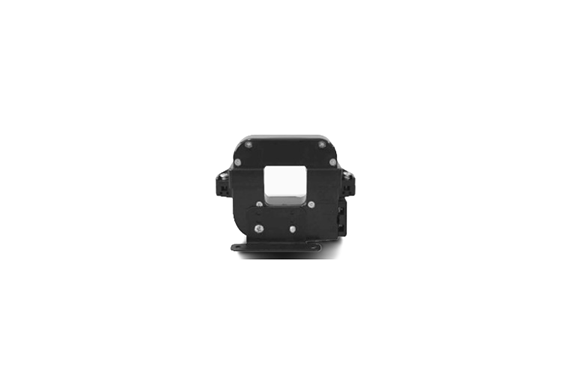

Multi CTS-300 Split AC Low Voltage Current Transformer
Manufacturer: Multi Measuring Instrument Co., Ltd.
Model: CTS-300
Features
- 5A output type for general-purpose instruments
- Safety measures with short-circuit switch for secondary output
- Accuracy equivalent to class 1 for general instruments
- Easy to install due to split-type design
- Comes with fixing hardware
Specifications
| Rated primary current | AC300A(50/60Hz) |
|---|---|
| Maximum allowable current | AC360Armscontinuous |
| Rated secondary current | AC5A |
| Rated Burden (VA) | 5VA |
| Application frequency | 50/60Hz |
| Wire diameter that can be installed | Up to 37×34.5mm |
| accuracy | ±1.0% In ±1.5%0.2In |
| Phase difference | ±1.0° In ±1.5°0.2In |
| Open protection | with output short-circuit switch |
| Operating Circuit Voltage | AC600V or less |
| Withstand voltage | AC2200V/1 minute (between outer case ~ output) |
| Insulation resistance | DC500V/100MΩ or more (between outer case ~ output) |
| Temperature and humidity | -10~60°C 80%RH or less (but not condensing) |
| Reference Standards | RoHS compliant |
| Dimensions and weight | W127×H95×D40mm approx. 540g |
