Multi Measuring Instruments Co.

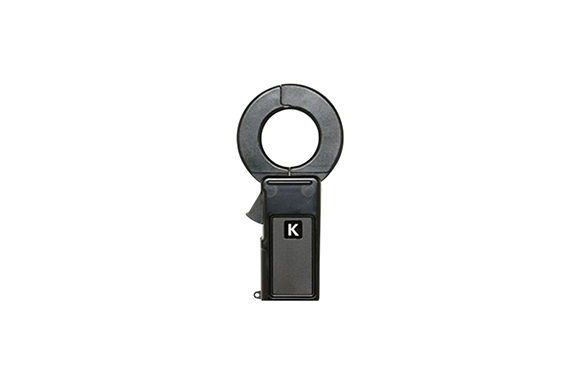

Multi DCZCT-110S clamp-on DC current sensor
Manufacturer: Multi Measuring Instruments Co., Ltd.
Model: DCZCT-110S
Features
- The first high-precision DC leakage current sensor with clamping type
Specifications
| Applicable current | DC ±0.1 mA ～ ±100 mA |
|---|---|
| Output Voltage | 25 mV / 1 mA（2.5 V 100 mA） |
| Wire diameter that can be installed | φ 30 mm |
| accuracy | ±1 %F.S |
| Supply voltage | DC ±5 V (both power supplies) |
| Current Consumption | Less than 15 mA |
| Insulation resistance | DC 500 V / 100 MΩ or higher (between external case outputs) |
| Temperature and humidity | 0 ~ 60 °C, 80 %RH or less (but not condensing) |
| Lead Wire | 15 cm (Red: +5 V, Black: -5 V, White: Output, Green: COM) |
| Dimensions and Mass | W58×H117×D23 mm, approx. 180 g |
