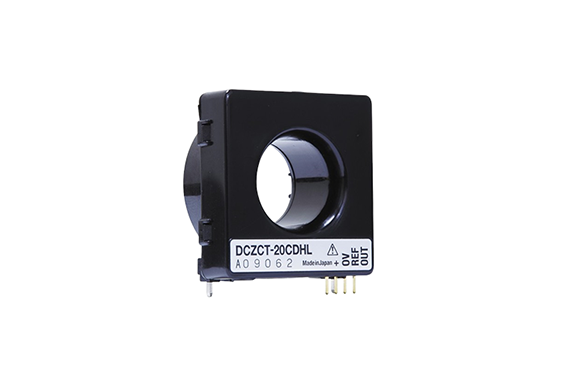

Multi DCZCT-20CDHL Board-mounted high-precision leakage current sensor
Manufacturer: Multi Measuring Instruments Co., Ltd.
Model: DCZCT-20CDHL
Features
- Microcurrent measurement: DC ±1 mA ~ ±200 mA
- High accuracy: Accuracy 1 % (±1 %FS ±10 mV)
- Low magnetization effect: DC equivalent to 1 mA or less Power
- supply Easy-to-use single power supply +5 V specification
- Equipped with reference voltage function
Specifications
| Rated current | DC ±200 mA |
|---|---|
| Output Voltage | ±2 V F.S |
| Application frequency | Direct Current (DC) Only |
| Wire diameter that can be installed | Up to φ 20 mm |
| accuracy | ±1 %F.S ±10 mV |
| Supply voltage | DC 5 V ±5 % (single supply), absolute maximum rating of 6 V |
| Current Consumption | Approx. 30 mA |
| Output response speed | Approx. 100 ms |
| Dimensions and Mass | W40.6×H42.4×D22.3 mm, approx. 27 g |
| option | Exclusive booth bar |
