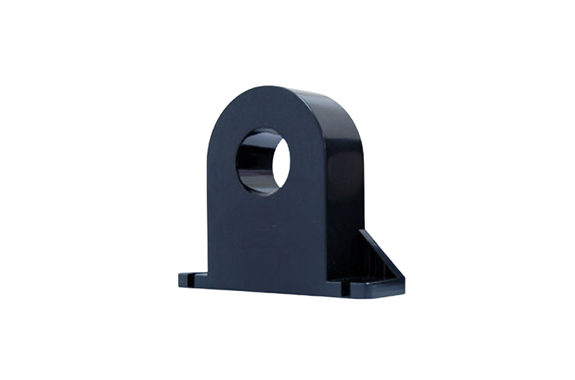

Multi DCZCT-45NK The first full-fledged DC leakage current sensor
Manufacturer: Multi Measuring Instruments Co., Ltd.
Model: DCZCT-45NK
Features
- For DC leakage current measurement
- Easy-to-use single supply +24 V type
Specifications
| Applicable current | DC ±1 mA ～ ±100 mA |
|---|---|
| Output Voltage | DC 2.5 V / 100 mA（25 mV / 1 mA） |
| Application frequency | Direct Current (DC) Only |
| Wire diameter that can be installed | φ 45 mm (through-type) |
| accuracy | ±1 %F.S |
| Supply voltage | DC +24 V |
| Insulation resistance | DC 500 V / 100 MΩ or higher (between external case outputs) |
| Temperature and humidity | -20 °C ~ +80 °C, 80 %RH or less (but not condensing) |
| Reference Standards | RoHS compliant |
| Output Leads | 15 cm (Red: +24 V, White: Output, Green: Output GND, Black: Power 0 V) |
| Dimensions and Mass | W106×H143×D47 mm (excluding mounting), approx. 1.8 kg |
