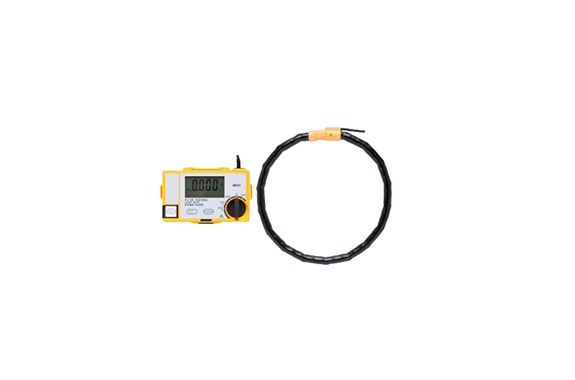

Multi FCM-100 Flexible AC/DC Clamp Meter
Manufacturer: Multi Measuring Instruments Co., Ltd.
Model: FCM-100
Features
Flexible sensor that can be bent and stretched to a certain extent
Measuring range AC/DC 0.100A~2500A (minimum resolution 0.001A)
Large diameter CT (inner diameter 200mm)
Specifications
| Measuring range | AC/DC 3A/30A/300A/3000A |
|---|---|
| AC current accuracy | 3A/30A/300A range ±3.0%rdg±10dgt3000A range 300A~2000A ±3.0%rdg±10dgt 2000A~2500A ±10.0%rdg±10dgt |
| DC current accuracy | 3A/30A/300A range ±3.0%rdg±10dgt3000A range 300A~2000A ±3.0%rdg±10dgt 2000A~2500A ±10.0%rdg±10dgt |
| CT Inner Diameter | φ200mm |
| Minimum resolution | 0.001A |
| Other features | Data Hold, Auto Power Off, One-Push 0 Adjustment, RMS |
| power | AA alkaline battery×6 |
| Dimensions and Weight | Body: W159×H105×D53mm approx. 380g CT: Inner diameter φ200mm approx. 280g |
| accessory | Batteries, carrying cases |
