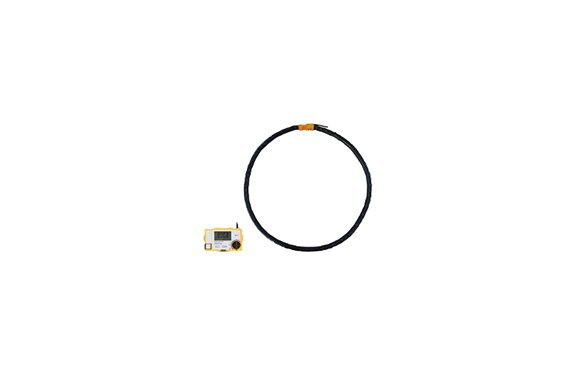

Multi FCM-400 Flexible AC/DC Clamp Meter
Manufacturer: Multi Measuring Instruments Co., Ltd.
Model: FCM-400
Features
Flexible sensor that can be bent and stretched to some extent
Measuring range AC/DC 0.100A~300A (minimum resolution 0.001A)
Ultra-large diameter CT (inner diameter approx. 450mm)
Specifications
| Measuring range | AC/DC 3A/30A/300A |
|---|---|
| accuracy | ±10％rdg±10dgt |
| CT Inner Diameter | φ450mm |
| Minimum resolution | 0.001A |
| Other features | Data Hold, Auto Power Off, One-Push 0 Adjustment, RMS |
| power | AA alkaline battery×6 |
| Dimensional mass | Body: W159×H105×D53mm approx. 380g CT: Inner diameter φ450mm approx. 600g |
| accessory | Batteries, carrying cases |
