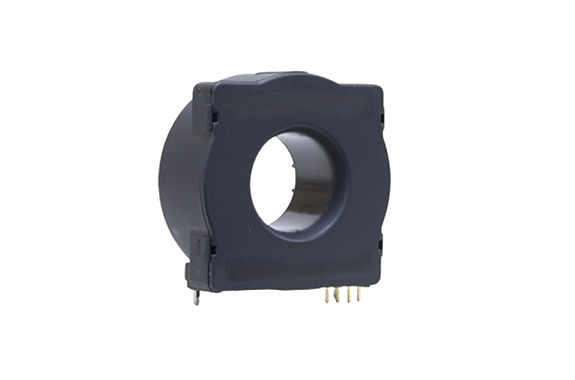

Multi FDAZCT-20LSP-0.6S Board‐mounted excitation leakage current sensor
Manufacturer: Multi Measuring Instruments Co., Ltd.
Model: FDAZCT-20LSP-0.6S
Features
・Board-mounted
type ・DC/AC microcurrent detection
・+5 V single power supply
・CT window diameter φ 20 mm
Specifications
| Rated current | AC/DC ±600 mA |
|---|---|
| Maximum allowable current | 850 mA |
| Output Voltage | DC ±1200 mV F.S |
| Wire diameter that can be installed | Up to φ 20 mm |
| accuracy | ±1.5 %F.S |
| Response speed | 50 μs |
| Supply voltage | +5 V (single supply) |
| Operating temperature and humidity range | -40 °C ~ +105 °C, 85 %RH or less |
| standard | RoHS compliant |
| Dimensions and Mass | W44.8×H44.6×D17.9 mm, approx. 30 g |
