Multi Measuring Instruments Co.

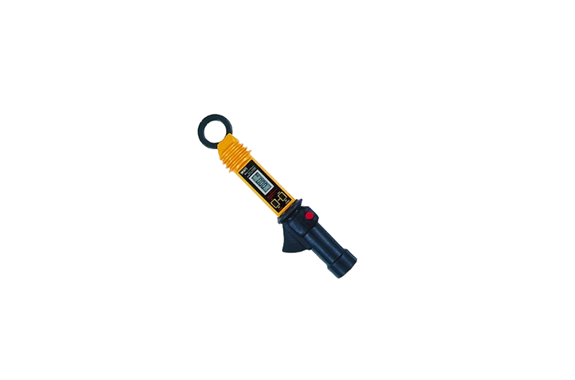

Multi HCL-3000+ High and Low Pressure Clamp Meter
Manufacturer: Multi Measuring Instruments Co., Ltd.
Model: HCL-3000+
Features
- Can be used for low to high voltages ranging from 80V to 7000V.
- Lever structure allows for easy one-handed operation.
- Wide measurement range: 20mA to 200A.
Specifications
| Measuring range | AC 2000mA/20A/200A |
|---|---|
| AC current accuracy | ±2.0％rdg±5dgt |
| CT Inner Diameter | φ33mm |
| Minimum resolution | 1mA |
| Other features | Data Hold, Auto Power Off |
| Operating Circuit Voltage | AC 80～7000V |
| power | AA manganese batteries×2 |
| Dimensions and weight | W76×H311×D42mm Approx. 285g |
| accessory | Batteries, carrying cases |
