Multi Measuring Instruments Co.

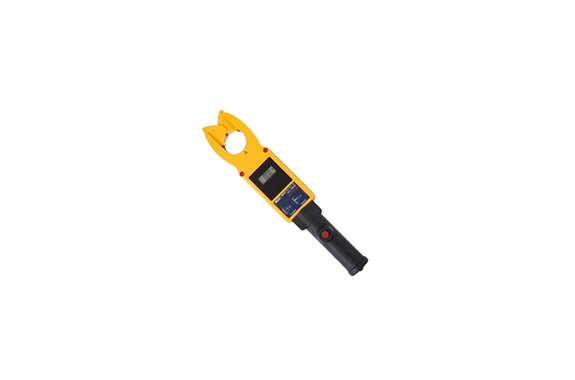

Multi HCL-3000D High and Low Pressure Clamp Meter
Manufacturer: Multi Measuring Instruments Co., Ltd.
Model: HCL-3000D
Features
- Can be used for voltages ranging from 80V to 7000V
- Detachable type with push to clamp and pull to release
- Wide measurement range from 1mA to 20A
Specifications
| Measuring range | AC 2000mA/20A |
|---|---|
| AC current accuracy | ±2.0％rdg±8dgt |
| CT Inner Diameter | φ35mm |
| Minimum resolution | 1mA |
| Other features | Data Hold, Auto Power Off |
| Operating Circuit Voltage | AC 80～7000V |
| power | AA batteries×2 |
| Dimensions and Weight | W70×H356×D32mm Approx. 370g |
| accessory | Batteries, carrying cases |
