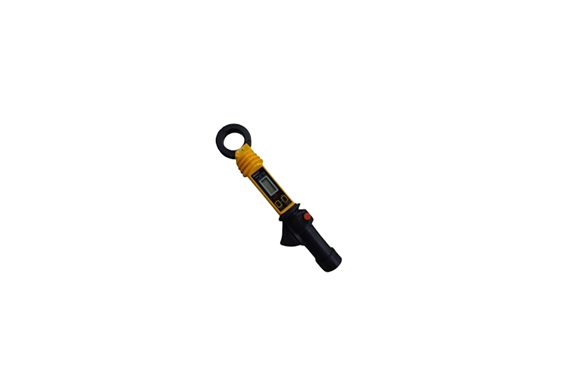

Multi HCL-4000 High and Low Pressure Clamp Meter
Manufacturer: Multi Measuring Instruments Co., Ltd.
Model: HCL-4000
Features
- Can be used for low to high voltages ranging from 80V to 7000V.
- Lever structure enables easy one-handed operation.
- Wide measurement range: 0mA to 100A.
Specifications
| Measuring range | AC 1000mA / 10A / 100A |
|---|---|
| Measuring range | 1000mA：0 ～ 999mA 10A ：1.00 ～ 9.99A 100A ：10.0 ～ 99.9A |
| AC current accuracy | ±2.0％rdg ±5dgt |
| CT Inner Diameter | φ40mm |
| Minimum resolution | 1mA |
| Other features | Data Hold, Auto Power Off |
| Operating Circuit Voltage | AC 80～7000V |
| power | AA manganese batteries×2 |
| Dimensions and weight | W76×H328×D42mm approx. 295g |
| accessory | Batteries, carrying cases |
