Multi Measuring Instruments Co.

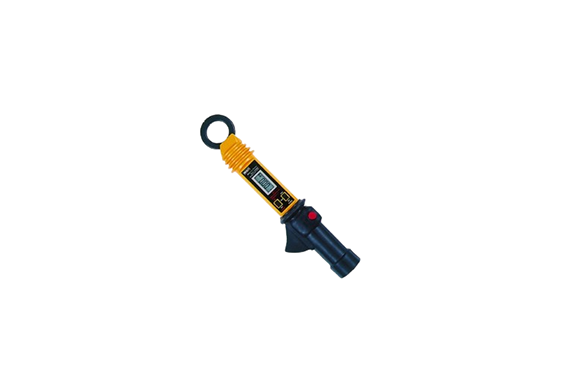

Multi HCL-5000+ High and Low Pressure Clamp Meter
Manufacturer: Multi Measuring Instruments Co., Ltd.
Model: HCL-5000+
Features
- Can be used for low to high voltages ranging from 80V to 7000V.
- Lever structure allows for easy one-handed operation.
- Wide measurement range: 0.2A to 500A.
Specifications
| Measuring range | AC 20A/200A/500A |
|---|---|
| AC current accuracy | 20A/200A range ±2.0%rdg±5dgt500A range 0~400A ±2.0%rdg±5dgt 400~500A ±2.5%rdg±5dgt |
| CT Inner Diameter | φ33mm |
| Minimum resolution | 0.01A |
| Other features | Data Hold, Auto Power Off |
| Operating Circuit Voltage | AC 80～7000V |
| power | AA manganese batteries×2 |
| Dimensions and weight | W76×H311×D42mm Appro |
