Multi Measuring Instruments Co.

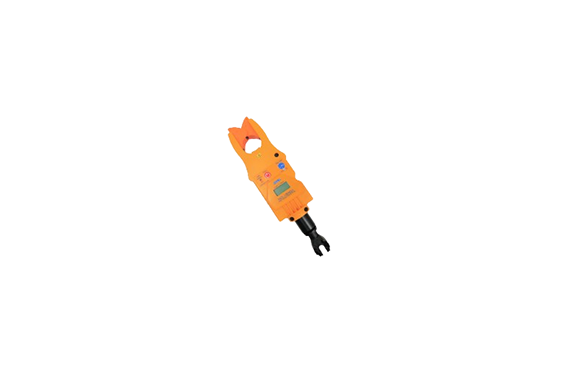

Multi HCL-7000DX-M Bluetooth Compatible High and Low Pressure Clamp Meter
Manufacturer: Multi Measuring Instruments Co., Ltd.
Model: HCL-7000DX-M
Features
- Bluetooth function.
- Can be used for low to high voltages ranging from 80V to 7000V (when IR-110 is installed).
- Can be used in combination with a telescopic rod.
Specifications
| Measuring range | AC 20A / 200A / 600A |
|---|---|
| AC current accuracy | 20A / 200A range ±2.5%rdg ±8dgt600A range 200~399A ±2.5%rdg ±8dgt 400~600A ±3.0%rdg ±8dgt |
| CT Inner Diameter | φ35mm |
| Minimum resolution | 0.01A |
| Other features | Bluetooth communication, MAX hold, auto power off |
| Operating Circuit Voltage | Telescopic Rod (IR-110): AC 80~7000V Telescopic Rod (IR-100): AC 80~23kV |
| power | AA alkaline batteries×3 |
| Dimensions and weight | W86×H313.4×D55 mm Approx. 479g |
| accessory | AA alkaline battery, carrying case |
| Telescopic rod | IR-110 ¥10,000 (excluding tax) Operating circuit voltage ~7kV W36×H390~550×D36 mm Approx. 325gIR-100 ¥20,000 (excluding tax) Operating circuit voltage ~23kV W44×H510~1000×D100 mm Approx. 830g |
| Optional | BLE Indicator (MDU-100X) ¥23,000 (excluding tax) |
