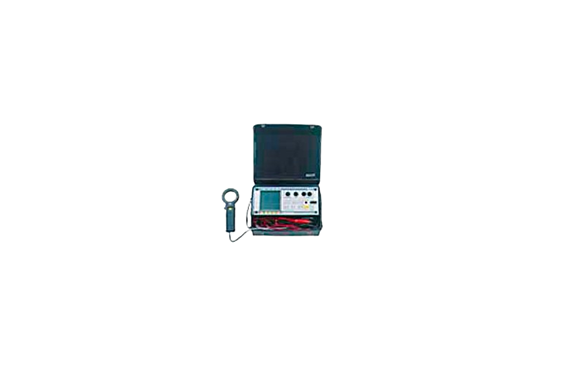

Multi HWT-1000 Harmonic Monitor
Manufacturer: Multi Measuring Instruments Co., Ltd.
Model: HWT-1000
Features
- All necessary measurements are possible
- Easy to operate, small size, and low cost
- Simultaneous measurement and memory of 2 channels (current and voltage)
- True effective value can be detected up to the 40th order
- Directional spectrum display of harmonic power (identification of the source)
- PT ratio and CT ratio are set, and measured values are converted to the first order
Specifications
| power | NI-Cd battery-powered or AC adapter |
|---|---|
| Dimensions and weight | 200(W)×100(H)×81(D)mm 1.5kg |
| option | AC Adapter ¥4,730 Integrated Case (Main Unit/AC Adapter) ¥21,000 |
| Measurement Functions | ○ Measurement objects are single-phase, three-phase 3-wire, and three-phase 4-wire ○ Digital display of voltage/current value, active/reactive power, phase/power factor ○ Waveform display of voltage/current (1) Harmonic spectrum display of voltage/current (2) Harmonic power/direction spectrum display (3) Harmonic content/phase list by harmonic (4) Harmonic effective value/phase list by harmonic |
| accessory | Case: 1 Instructions: 1 CT: 1 |
