Multi Measuring Instruments Co.

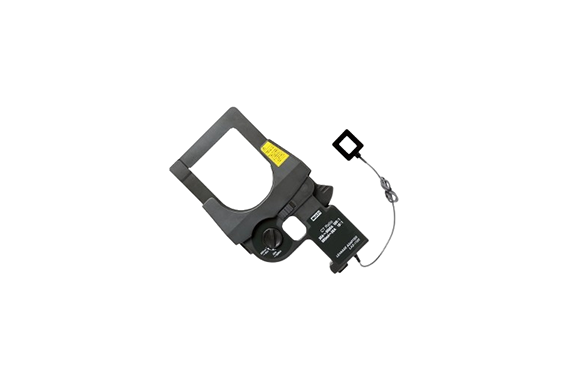

Multi LAD-1100 Leak Adapter
Manufacturer: Multi Measuring Instruments Co., Ltd.
Model: LAD-1100
Features
● Two ratios can be selected, 10:1 and 100:1
● Inner diameter of 110 mm can measure leakage current to high current of 3000 A
Specifications
| Maximum allowable current | AC3000A |
|---|---|
| CT Inner Diameter | 108×128mm |
| Current Change Ratio | 10：1 100：1 |
| power | unnecessary |
| Dimensions and Weight | W194×H341.5×D52mm Approx. 1800g |
| Secondary side clamp window dimensions | Outer Diameter W42×H47×D11mm Inner Diameter W19.5×H25mm |
| accessory | Carrying case |
