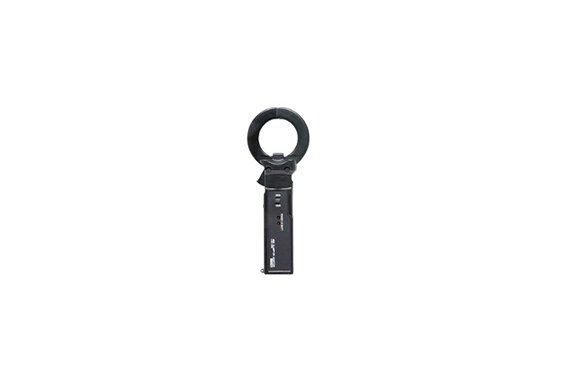

Multi LAD-250 Clamp-on DC Current Sensor
Manufacturer: Multi Measuring Instruments Co., Ltd.
Model: LAD-250
Features
General purpose DC current measurementCT
DC and AC current measurement DC voltage output
Specifications
| Applicable current | AC/DC 1A～200A/1000A |
|---|---|
| Example output | 200A range: DC200mV f.s |
| 1000A range: DC100mV f.s | |
| Wire diameter that can be installed | φ40mm |
| Measurement method | Average Detection System |
| accuracy | ±3.0%rdg |
| Supply voltage | 2 x Button Batteries LR-44 × |
| Input Resistance | 1MΩ or more |
| Withstand voltage | AC1000V/1 minute (between outer case outputs) |
| Insulation resistance | DC500V/100MΩ or higher (between external case and output) |
| Temperature and humidity | 0~40°C 80%RH or less, but no condensation |
| Output Leads | 1.2m with banana plug |
| Dimensions and weight | W68.5×H175×D30mm approx. 140g |
