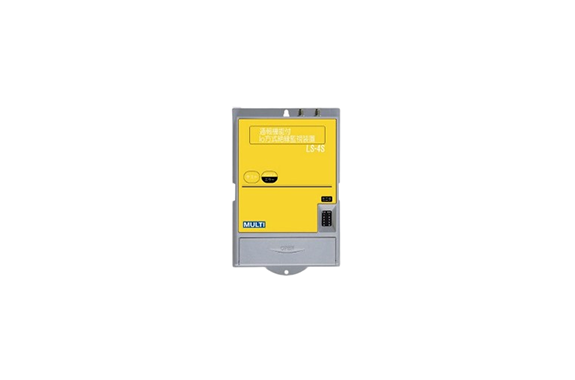

Multi LS-4S Io type isolation monitoring device with notification function

Manufacturer: Multi Measuring Instruments Co., Ltd.
Model: LS-4S

Features

・By providing an email server with multiple meters, the server usage fee is greatly reduced and the notification email is free
・KDDI 4G LTE
is adopted ・Settings can be changed without going to the installation location
・The current value of each item can
be checked “anytime” and “whereabouts” ・Abundant reporting functions: leakage/temperature/contact/power outage restoration/periodic call/battery replacement/test report
・No software for setting is required, easy to set with the setting site “MULTI Measure & Trace”
・Measurement values at the time of reporting can be stored on the server, and the report history can be checked, as well as trend graphs can be displayed and CSV output is possible.

Reporting Specifications

leakage	Reported value setting AC10~1000mA Accuracy ±10%rdg Resolution 1mA Detection/return time setting 0.5~3600 seconds
temperature	Reporting Value Setting 60~100°C Accuracy ±10%rdg Resolution 0.1°C Detection/Return Time Setting 0.5~3600 seconds
contact	Detection/Return Time Setting: 0.5~3600 seconds
blackout	Detection/Return Time Setting 0.5~100 seconds
Other reporting functions	Battery Replacement/Periodic Report/Test Report

General Specifications

Number of monitoring circuits	IO 4 Circuit Temperature/Contact 4 Circuit
communication	KDDI 4G LTE Line
Operating temperature and humidity range	0~50°C 35~85%RH (non-condensing)
Insulation resistance	10MΩ or more at DC500V mega
Withstand voltage	AC1500V Apply for 1 minute and there is no abnormality
Case Material	Flame retardant resin
Power consumption	Approx. 20VA
Contact Input Level	ON 2.0V or less OFF 3.0V or more
power	AC100V　50／60Hz　（AC85～130V）
Dimensions and Weight	W130×H200×D38mm Approx. 550g
accessory	φ22mm split type ZCT (ZCT-22FTV, cable length 4m)×2 Power cord Antenna ×2 Mounting magnet (pre-installed) AA alkaline battery ×3
option	φ22mm split type ZCT (ZCT-22FTV, cable length 4m) φ80mm split type ZCT (ZCT-80MS, cable length 4m) Temperature sensor (MP-002) Open price Antenna extension cable 12m (MC-005) Open price Antenna Extension Cable 20m(MC-006) Open Price
Precautions for use	・A separate server usage fee will be required ・A contract administration fee will be charged at the time of contract.
