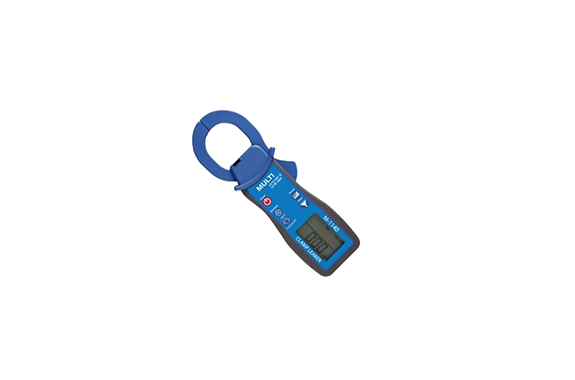

Multi M-1140 Clamp Leaker
Manufacturer: Multi Measuring Instruments Co., Ltd.
Model: M-1140
Features
・CT inner diameter φ40mm can measure up to 300A
・Leakage current is compatible with high-precision measurement with a minimum resolution of 0.01mA
・Filter function to cut high frequency frequencies of about 150Hz
or more ・MAX hold function
to maintain the maximum value of the displayed value – Auto-range switching to select the optimal range according to the measured value
– Large, easy-to-read display
– EN61010 CAT III 1000V/CAT IV 600V compliant
– Backlit
Specifications
| Measuring range | AC 30mA／300mA／3A／30A／300A／Auto |
|---|---|
| AC current accuracy | 30mA/300mA/3A/30A range ±1.2%rdg±5dgt300A range 0~200A ±1.2%rdg±5dgt 200~250A ±3.0%rdg±5dgt 250~300A -5.0%rdg± 5dgt |
| CT Inner Diameter | φ40mm |
| Minimum resolution | 0.01mA |
| Filter switches | Cuts high-frequency frequencies of about 150Hz or more |
| MAX Hold | Keep the maximum value displayed |
| Other features | Over Display, Low Battery Voltage Indicator, Auto Power Off, Data Hold, Backlight |
| power | CR2032×1 |
| Dimensions and Mass | W66×H206×D35mm Approx. 260g |
| accessory | Batteries, carrying cases |
