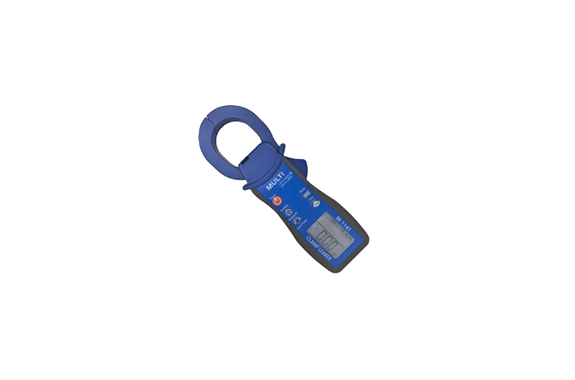

Multi M-1141 Clamp Leaker
Manufacturer: Multi Measuring Instruments Co., Ltd.
Model: M-1141
Features
・CT inner diameter φ40mm can measure up to 300A
・Leakage current is compatible with high-precision measurement with a minimum resolution of 0.01mA
・Equipped with a bandpass filter with center frequency fo=55Hz
・MAX hold function
to maintain the maximum value of the displayed value – Auto-range switching to select the optimal range according to the measured value
– Large, easy-to-read screen
display – IEC61010-1, EN61010 CAT IV 600V/CAT III 1000V compliant
– Backlit
Specifications
| Measuring range | AC 30mA／300mA／3A／30A／300A／Auto |
|---|---|
| AC current accuracy | 30mA/300mA/3A/30A Range ±1.2%rdg±5dgt 300A Range |
| CT Inner Diameter | φ40mm |
| Minimum resolution | 0.01mA |
| filter | Bandpass filter with center frequency fo=55 Hz. |
| MAX Hold | Show maximum value |
| Other features | Over Display, Low Battery Voltage Indicator, Auto Power Off, Data Hold, Backlight |
| power | CR2450×1 *Please refer to the instruction manual for whether the battery is compatible or not. |
| Dimensions and Mass | W66×H206×D35mm approx. 263g |
| accessory | Batteries, carrying cases |
