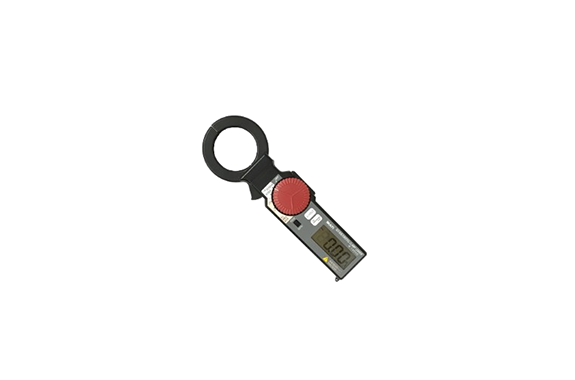

Multi M-140HC High Voltage Phase Current Measurement Clamp Leaker
Manufacturer: Multi Measuring Instruments Co., Ltd.
Model: M-140HC
Features
- Simple:
- Load current can be measured with high-voltage CV/CVT cables with shielding layer grounding.
- Revolutionary:
- CVT cables can measure load current by simply biting the wires.
- CV cables can measure load current in three pieces simultaneously.
- Low Price:
- Measures load/leakage current, in addition to conventional clamp meters.
Specifications
| Measurement Functions | AC leakage current measurement AC load current measurement Phase current measurement of high-voltage circuits (measurement at the shielded part that is grounded) |
|---|---|
| Measuring range | AC 30mA/300mA/30A/300A Phase Current CVT16A, CV48A |
| AC current accuracy | 30mA/300mA range ±1.2%rdg±5dgt30A/300A range 0~200A ±1.2%rdg±5dgt 200~250A (+1.0% -2.0%)rdg±5dgt 250~300A (+1.0 – 3.0%)rdg±5dgt Phase Current CVT/CV |
| CT Inner Diameter | φ40mm |
| Minimum resolution | 0.01mA |
| Other features | Data Hold, Auto Power Off |
| power | AA alkaline battery×3 |
| Dimensions and Weight | W64×H195×D24mm Approx. 180g |
| accessory | Batteries, soft cases |
