Multi Measuring Instruments Co.

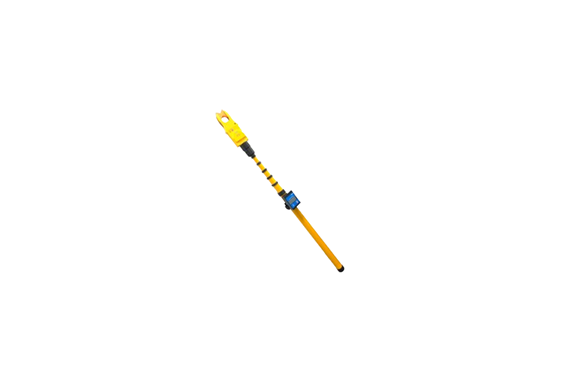

Multi M-140LX Bluetooth Telescopic Clamp Leaker
Manufacturer: Multi Measuring Instruments Co., Ltd.
Model: M-140LX
Features
- Equipped with Bluetooth function
- Free combination of CT, indicator, and telescopic pipe
- Equipped with bandpass filter (secondary BPF, fo = 55 Hz)
- Allows measurement with suppression of low-frequency and harmonic components
Specifications
| Measuring range | AC 30mA / 300mA / 3000mA / 100A |
|---|---|
| accuracy | ±1％rdg ±5dgt |
| CT Inner Diameter | φ35mm |
| Minimum resolution | 0.01mA |
| Application frequency | 50/60Hz Shared |
| communication | Bluetooth4.2 Class2 (can be used at a distance of up to 10 meters) |
| Sample Rate | 2 times / sec |
| filter | Bandpass filter (secondary BPF, fo=55Hz) |
| Other features | Auto range switching, data hold, low battery voltage indication, auto power off |
| power | CT: AA alkaline battery ×3 Indicator: AA alkaline battery ×3 |
| Dimensions and Mass (Excluding Indicators) | M-140LX: W86×H1204~5000×D55mm approx. 1850g M-140LX-2: W86×H1355~6000×D55mm approx. 2050g |
| Indicator Dimensions and Mass | W69×H97×D50mm 183g |
| Set Contents | CT: CT-M-140LX BLE Indicator: MDU-100X Mobile Case: MLX-CASE Standard CT Cap: MLX-CAP Telescopic Pipe with Attachment M-140LX: MLX-5P (5m) / M-140LX-2 : MLX-6P (6m) |
| price | M-140LX: ¥150,000 (excluding tax) M-140LX-2: ¥175,000 (excluding tax) |
| Single item price | CT (CT-M-140LX): ¥70,000 (excluding tax) BLE indicator (MDU-100X): ¥23,000 (excluding tax) Mobile case (MLX-CASE): ¥5,500 (excluding tax) Standard CT cap (MLX-CAP): ¥1,500 (excluding tax) Shoulder belt ( MLX-BELT): ¥7,800 (excluding tax) Telescopic pipe with attachment 5m (MLX-5P): ¥50,000 (excluding tax) Telescopic pipe with attachment 6m (MLX-6P): ¥75,000 (excluding tax) |
