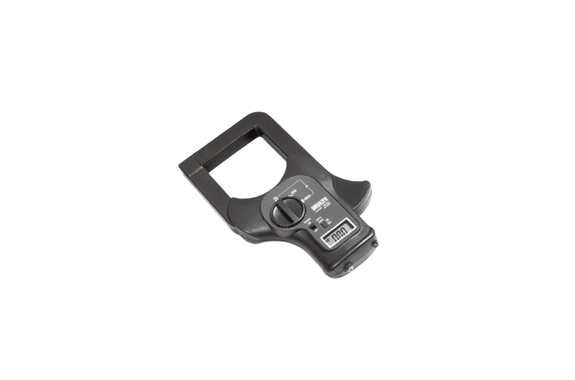

Multi M-1800 Large Diameter Clamp Meter
Manufacturer: Multi Measuring Instruments Co., Ltd.
Model: M-1800
Features
・Large-diameter 74×80mm with a wide range measurement of 0.1A~1800A
AC ・With logger output function (DC100mV F.S)
Specifications
| specification | |
|---|---|
| Measuring range | AC 20A/200A/1800A |
| AC current accuracy | ±2.0%rdg±5dgt |
| CT Inner Diameter | 74×80mm |
| Minimum resolution | 0.01A |
| output | DC 100mV (full scale for each range) *1800A range only DC 90mV F.S |
| Other features | Data Hold Recorder Output |
| power | AA 4 manganese batteries×2 |
| Dimensions and Weight | W138×H225×D37mm approx. 500g |
| accessory | Batteries, soft cases |
| option | Recorder Output Code MR-002 Banana Plug on the Recorder Side ¥2,200 (excluding tax) MR-007 Solder Finish on the Recorder Side ¥2,200 (excluding tax) |
