- Leakage current and current measurement capability

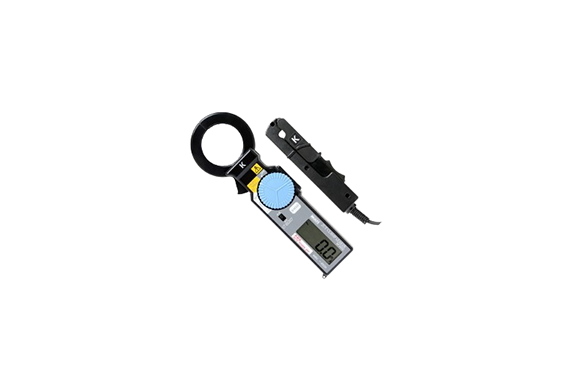

- Equipped with two current transformers (CTs):
- Main body CT: φ40 mm
- Auxiliary CT: φ5 mm
- Dual-CT method enables leakage current measurement
- Compatible with single-phase circuits
- Supports distorted waveforms with True RMS indication
- Measurement range: AC 0.1 mA to 200 A (True RMS)
- Optional auxiliary CT available: Model ZCT-18-2
Specifications
| Measuring range | AC1000mA/10A/20A/200A |
|---|---|
| AC current accuracy | 1000mA/10A/20A range ±1.0%rdg±10dgt200A range 0~100A ±1.0rdg±10dgt 101~150A ±3.0%rdg±10dgt 151~200A -6.0%rdg± 10dgt |
| CT Inner Diameter | φ40mm |
| Auxiliary CT Inner Diameter | φ5mm |
| Minimum resolution | 0.1mA |
| Other features | Data Hold, Auto Power Off, Effective Value Measurement (RMS) |
| power | AA alkaline battery×3 |
| Dimensions and Weight | Body W64×H195×D24mm approx. 190g Auxiliary CT W25×H114×D19mm approx. 80g |
| accessory | Battery, soft case, auxiliary CT (CTP-05-2, cable length approx. 1.5m), connector cover×2 |
| option | Auxiliary CTφ18mm (ZCT-18-2) ¥32,500 (excluding tax) |
