Multi Measuring Instruments Co.

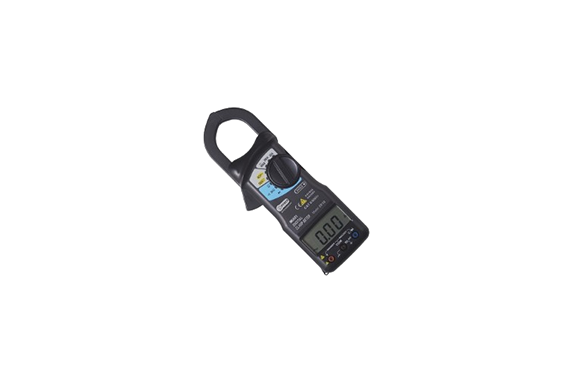

Multi M-2010 Digital Clamp Meter
Manufacturer: Multi Measuring Instruments Co., Ltd.
Model: M-2010
Features
Multifunctional Digital Clamp Meter
Low Price IEC1010-1 CAT III. 600V Compliant
Specifications
| Measuring range | AC Current AC 20A/200A/600A AC Voltage AC 2V/20V/200V/600V DC Voltage DC 2V/20V/200V/600V Resistance 200Ω/2kΩ/20kΩ/200kΩ/2000kΩ/20MΩ Continuity Check Buzzer Sound Diode Test 2V |
|---|---|
| AC current accuracy | 20A/200A ±1.5%rdg±10dgt 600A ±1.0%rdg±8dgt |
| CT Inner Diameter | φ40mm |
| Minimum resolution | 0.01A |
| Other features | Data Hold, Auto Power Off |
| power | AA 4 manganese batteries×2 |
| Dimensions and Weight | W70×H223×D34mm Approx. 425g |
| accessory | Batteries, soft cases, test leads |
