Multi Measuring Instruments Co.

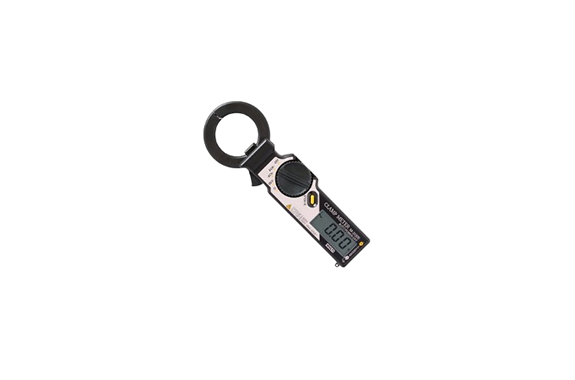

Multi M-2020 Mini Clamp Meter
Manufacturer: Multi Measuring Instruments Co., Ltd.
Model: M-2020
Features
Multi-function type that can measure current, voltage, and resistance in a mini type Achieve unprecedented ultra-low price IEC1010-1 CATII. 600V compliant0
Specifications
| Measuring range | AC Current 30A/300A AC Voltage 3V/30V/300V/500V DC Voltage 300mV/3V/30V/300V/500V Resistance 300Ω/3000Ω |
|---|---|
| AC current accuracy | ±2.0%rdg±8dgt |
| CT Inner Diameter | φ40mm |
| Minimum resolution | 0.01A |
| Other features | Data Hold, Auto Power Off |
| power | Button Battery LR44×2 |
| Dimensions and Weight | W64×H193×D24mm Approx. 100g |
| accessory | Batteries, soft cases, test leads |
