Multi Measuring Instruments Co.

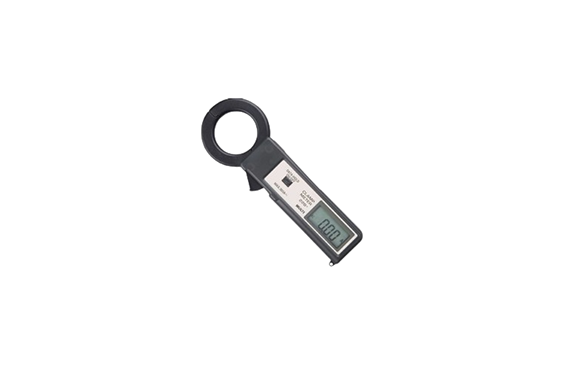

Multi M-220+ Mini Clamp Meter
Manufacturer: Multi Measuring Instruments Co., Ltd.
Model: M-220+
Features
・AC 30/300 A 2-range auto
・CT inner diameter φ33 mm
・Minimum resolution 0.01 A
・With auto power-off function
・With data hold function
Specifications
| Measuring range | AC 30 A/300 A |
|---|---|
| AC current accuracy | ±1.2 %rdg ±10 dgt |
| CT Inner Diameter | φ33 mm |
| Minimum resolution | 0.01 A |
| Other features | Data Hold, Auto Power Off |
| power | Button Battery LR44×2 |
| Dimensions and Mass | W54×H152×D23 mm Approx. 85 g |
| accessory | Batteries, soft cases |
