Multi Measuring Instruments Co.

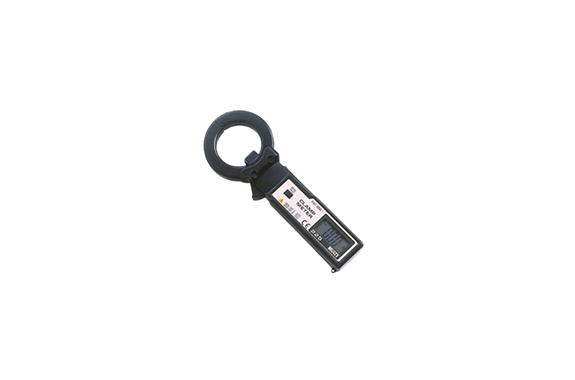

Multi M-225 Mini Clamp Meter
Manufacturer: Multi Measuring Instruments Co., Ltd.
Model: M-225
Features
Mini type, clamp CT window diameter φ40mm
AC 0.1~600A measurement, IEC1010-1 CAT III. 300V compliant
Specifications
| Measuring range | AC 200A/600A |
|---|---|
| AC current accuracy | 200A range: ±1.5%rdg±10dgt 600A range: ±1.0%rdg±8dgt |
| CT Inner Diameter | φ40mm |
| Minimum resolution | 0.1A |
| Other features | Data Hold |
| power | Button Battery LR44×2 |
| Dimensions and Weight | W64×H176×D23mm Approx. 116g |
| accessory | Batteries, soft cases |
