Multi Measuring Instruments Co.

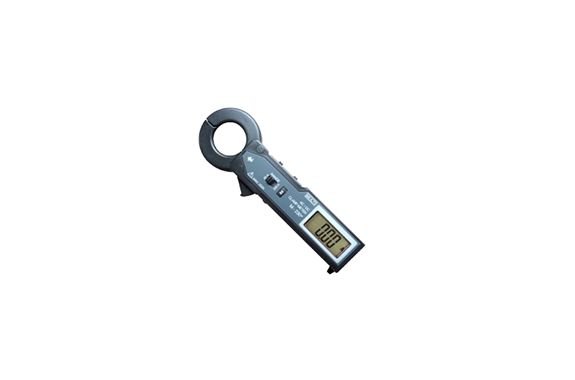

Multi M-230+ AC/DC Mini Clamp Meter
Manufacturer: Multi Measuring Instruments Co., Ltd.
Model: M-230+
Features
・Mini-sized clamp meter that can measure both AC and DC currents from 0.01A~200A
・The “combined” clamping structure that conventional AC/DC clamping meters do not have so much change over time that maintains high accuracy.
Specifications
| Measuring range | AC/DC 20A/200A |
|---|---|
| AC current accuracy | 20A range ±1.0%rdg±5dgt(50/60Hz) ±1.5%rdg±5dgt(40~49Hz/61~500Hz) ±2.0%rdg±5dgt(501~1kHz)200A range 1.0~150.0A ±1.5％rdg±5dgt(50/60Hz) ±2.0%rdg±5dgt(40～49Hz/61～1kHz) 150.1A～199.9A |
| DC current accuracy | 20A range ±1.0%rdg±3dgt200A range 0~150.0A 1.5%rdg±3dgt 150.1A~199.9A ±2.5%rdg±3dgt |
| CT Inner Diameter | φ23mm |
| Minimum resolution | 0.01A |
| Other features | Data Hold, Auto Power Off |
| power | Button Battery LR44×2 |
| Dimensions and Mass | W48×H146×D20mm Approx. 100g |
| accessory | Batteries, soft cases |
