Multi Measuring Instruments Co.

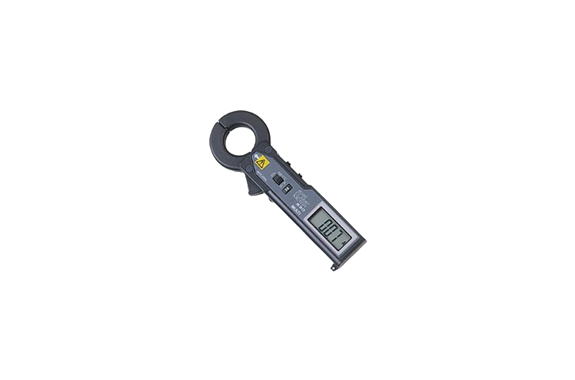

Multi M-230 AC/DC Mini Clamp Meter
Manufacturer: Multi Measuring Instruments Co., Ltd.
Model: M-230
Features
・Mini-sized clamp meter that can measure both AC and DC current from 0.01A ~ 200A
・The “combined” clamping structure that conventional AC/DC clamp meters do not have so much change over time and maintains high accuracy.
Specifications
| Measuring range | AC/DC 20A/200A |
|---|---|
| AC current accuracy | 20A range ±1.0%rdg±5dgt200A range 0~150A ±1.5%rdg±5dgt 150A~200A ±2.5%rdg±5dgt |
| DC current accuracy | 20A range ±1.0%rdg±3dgt200A range 0~150A 1.5%rdg±3dgt 150A~200A ±2.5%rdg±3dgt |
| CT Inner Diameter | φ23mm |
| Minimum resolution | 0.01A |
| Other features | Data Hold |
| power | Button Battery LR44×2 |
| Dimensions and Weight | W48×H146×D20mm Approx. 100g |
| accessory | Batteries, soft cases |
