Multi Measuring Instruments Co.

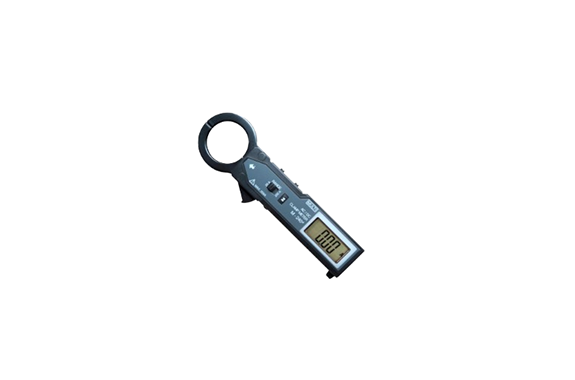

Multi M-240+ AC/DC Mini Clamp Meter
Manufacturer: Multi Measuring Instruments Co., Ltd.
Model: M-240+
Features
・Low cost of mini-size AC/DC clamps
・Safe CT with no metal exposure
・Clamp CT is thin and easy to clip
Specifications
| Measuring range | AC/DC 20A/200A |
|---|---|
| AC current accuracy | 20A range ±1.5%rdg±5dgt(50/60Hz) ±2.0%rdg±5dgt(40~49/61~500Hz)200A range 1.0~150.0A ±2.0%rdg±5dgt(50/60Hz) ±2.0rdg±5dgt(40～49Hz/61～500Hz) 150.1～199.9A ±3.0％rdg±5dgt(50/60Hz) ±4.0%rdg±5dgt(40～49/61～500Hz) |
| DC current accuracy | 20A range ±1.5%rdg±3dgt200A range 0~150.0A ±2.0%rdg±3dgt 150.1A~199.9A ±3.0%rdg±3dgt |
| CT Inner Diameter | φ30mm |
| Minimum resolution | 0.01A |
| Other features | Data Hold, Auto Power Off |
| power | Button Battery LR44×2 |
| Dimensions and Mass | W44×H148×D20mm Approx. 100g |
| accessory | Batteries, soft cases |
