Multi Measuring Instruments Co.

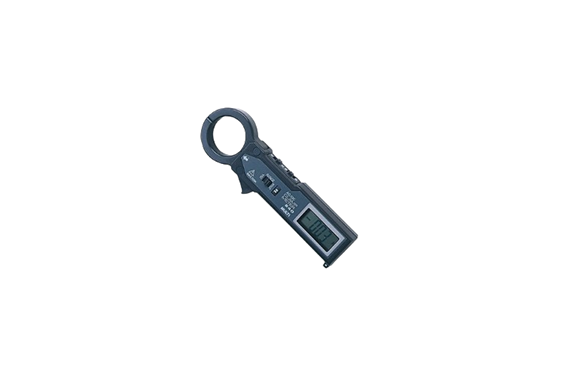

Multi M-240 AC/DC Mini Clamp Meter
Manufacturer: Multi Measuring Instruments Co., Ltd.
Model: M-240
Features
・Low cost of mini-size AC/DC clamps
・Safe CT with no metal exposure
・Clamp CT is thin and easy to clip
Specifications
| Measuring range | AC/DC 20A/200A |
|---|---|
| AC current accuracy | 20A range ±1.5%rdg±5dgt200A range 0~150A ±2.0%rdg±5dgt 150A~200A ±3.0%rdg±5dgt |
| DC current accuracy | 20A range ±1.5%rdg±3dgt200A range 0~150A ±2.0%rdg±3dgt 150A~200A ±3.0%rdg±3dgt |
| CT Inner Diameter | φ30mm |
| Minimum resolution | 0.01A |
| Other features | Data Hold |
| power | Button Battery LR44×2 |
| Dimensions and Weight | W44×H146×D20.5mm Approx. 80g |
| accessory | Batteries, soft cases |
