Multi Measuring Instruments Co.

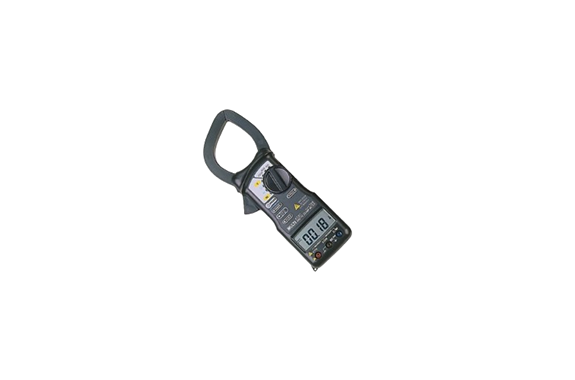

Multi M-260 AC/DC Clamp Meter
Manufacturer: Multi Measuring Instruments Co., Ltd.
Model: M-260
Features
AC/DC clamp meter with multifunction
Low price IEC1010-1 CAT III. 600V compliant
Frequency measurement function One-touch 0 tone
Specifications
| Measuring range | AC Current AC 40A/400A/2000A DC Current DC 40A/400A/2000A AC Voltage AC 400mV/4V/40V/400V/600V DC Voltage DC 400mV/4V/40V/400V/600V Resistance 400Ω/4kΩ/40kΩ/400kΩ/ 4000kΩ/40MΩ Continuity Check Buzzer Sound Frequency 100Hz/1kHz/10kHz/100kHz/1000kHz Diode Test 3V |
|---|---|
| AC current accuracy | 40A range ±2.0%rdg±8dgt 400A/2000A range ±1.5%rdg±8dgt |
| DC current accuracy | 40A range ±2.0%rdg±8dgt 400A/2000A range ±1.5%rdg±8dgt |
| CT Inner Diameter | φ55mm |
| Minimum resolution | 0.01A |
| Other features | Data Hold, Auto Power Off, One Push 0 Adjustment |
| power | AA 4 manganese batteries×2 |
| Dimensions and Weight | W84×H240×D34mm Approx. 390g |
| accessory | Batteries, carrying cases, test leads |
