Multi Measuring Instruments Co.

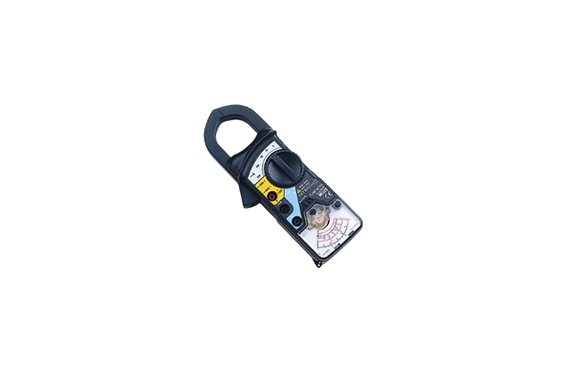

Multi M-3000 Analog Clamp Meter
Manufacturer: Multi Measuring Instruments Co., Ltd.
Model: M-3000
Features
multifunction analogue clamp meter IEC1010-1 CAT III. 600V compliant
Specifications
| Measuring range | AC Current AC 6A/15A/60A/150A/600A AC Voltage AC 300V/600V DC Voltage DC 60V Resistance 1kΩ/100kΩ Temperature -50°C~+200°C (Temperature Probe Sold Separately) |
|---|---|
| AC current accuracy | ±3.0% F.S |
| CT Inner Diameter | φ40mm |
| Minimum resolution | 0.2A |
| Other features | Meter lock function |
| power | AA manganese batteries ×2 (resistance, temperature measurement) |
| Dimensions and Weight | W69×H210.5×D34mm Approx. 403g |
| accessory | Batteries, Soft Cases, Test Leads, Fuses |
| option | Temperature Probe (MT-3000) ¥4,000 (excluding tax) |
