Multi Measuring Instruments Co.

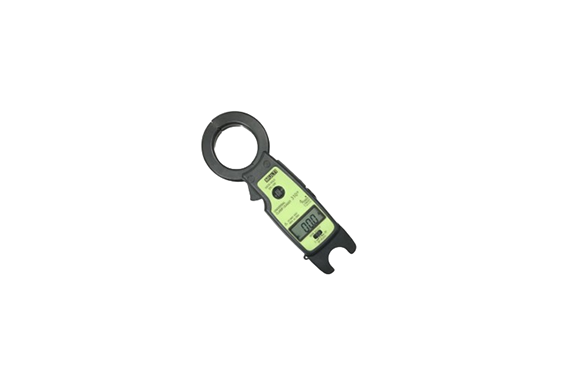

Multi M-310+ Universal Clamp Leaker
Manufacturer: Multi Measuring Instruments Co., Ltd.
Model: M-310+
Features
- Universal clamp meter with leakage current measurement function.
- CT inner diameter: 40mm.
- Wide range of measurement: 0.01mA to 300A.
Specifications
| Measuring range | Clamp CT AC 30mA/300mA/30A/300A Contact CT AC 300A |
|---|---|
| AC current accuracy | 30mA/300mA range ±1.2%rdg±5dgt30A/300A range 0~200A ±1.2%rdg±5dgt 200~250A ±3.0%rdg±5dgt 250~300A ±5.0%rdg±5dgt Contact CT 1 and 2 lines ±5%, 3 lines Approximate value |
| CT Inner Diameter | Clamp CT φ40mm Contact type CT φ20mm |
| Minimum resolution | 0.01mA |
| Other features | Data Hold, Auto Power Off |
| power | Button Battery LR-44×2 |
| Dimensions and weight | W64×H180×D21mm approx. 135g |
| accessory | Batteries, soft cases |
