Multi Measuring Instruments Co.

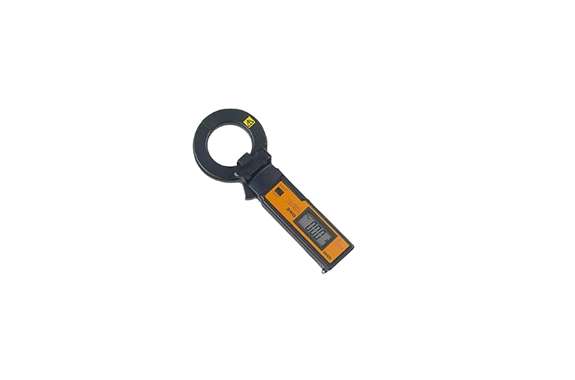

Multi M-340 Mini Clamp Leaker
Manufacturer: Multi Measuring Instruments Co., Ltd.
Model: M-340
Features
- Customers experiencing difficulties with power outages due to the partial revision of the Electricity Business Act can verify insulation status using a leakage ammeter.
- Magnetic shielding removes the influence of external magnetic fields and residual current.
- High-precision leakage ammeter capable of accurately measuring leakage currents below 1 mA.
Specifications
| Measuring range | AC2mA/20mA/60A |
|---|---|
| AC current accuracy | 2mA/20mA range ±1.0%rdg±5dgt60A range 0~50A ±1.0%rdg±5dgt 50~60A -5.0%±5dgt |
| CT Inner Diameter | φ40mm |
| Minimum resolution | 0.001mA |
| frequency | Please specify 50Hz or 60Hz when ordering |
| Other features | Data Hold, Auto Power Off |
| power | Button Battery LR44×2 |
| Dimensions and Weight | W68.5×H175×D23mm Approx. 145g |
| accessory | Batteries, soft cases |
