Multi Measuring Instruments Co.

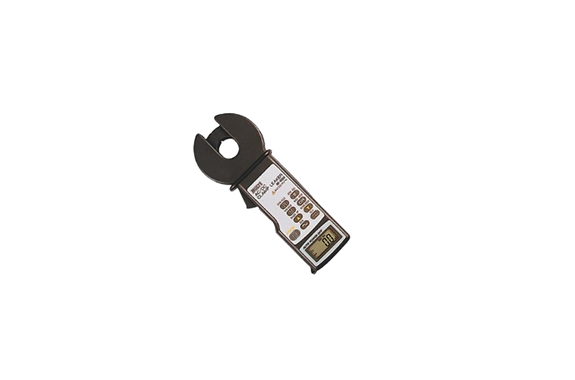

Multi M-600 AC/DC Clamp Leaker
Manufacturer: Multi Measuring Instruments Co., Ltd.
Model: M-600
Features
- High-precision measurement of AC/DC current from 1 mA to 10 A (resolution: 0.1 mA).
- High-precision measurement of DC leakage current (collective clamping of + and – lines) from 1 mA.
- One-touch zero-tone function for simplified operation.
Specifications
| Measuring range | AC/DC 200mA/2000mA/10A |
|---|---|
| AC current accuracy | 200mA/2000mA range ±1.0%rdg±5dgt 10A range ±1.0%rdg±10dgt |
| DC current accuracy | 200mA/2000mA range ±1.0%rdg±3dgt 10A range ±1.0%rdg±10dgt |
| CT Inner Diameter | φ20mm |
| Minimum resolution | 0.1mA |
| Other features | Data Hold, Auto Power Off, One-Push 0 Adjustment, RMS |
| power | AA alkaline batteries×2 |
| Dimensions and weight | W76×H194×D31mm Approx. 340g |
| accessory | Batteries, carrying cases |
