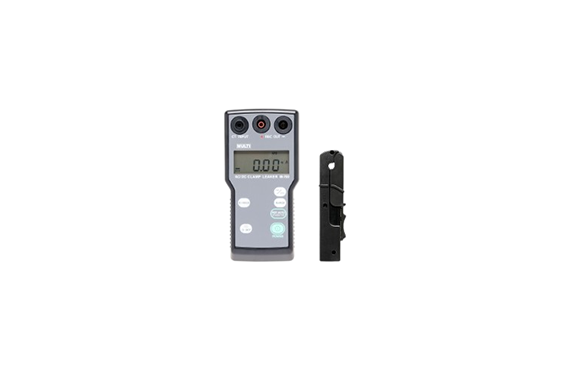

Multi M-700 AC/DC Clamp Leaker
Manufacturer: Multi Measuring Instruments Co., Ltd.
Model: M-700
Features
- High-precision measurement with a minimum value of 0.01mA in DCmA.
- Wide range of measurement: DC 0.01mA to 1000mA and AC 0.01mA to 10A.
- Magnetization-free recording for long periods (100mV DC output).
Specifications
| Measuring range | AC Current 100mA/1000mA/10A DC Current 100mA/1000mA |
|---|---|
| AC current accuracy | ±1.0％rdg±10dgt |
| DC current accuracy | 100mA range ±1.0%rdg±10dgt1000mA range 1.0~300mA ±1.0%rdg±10dgt 300.1~700mA ±2.0%rdg±10dgt 700.1~1000mA ±3.0%rdg±10dgt |
| CT Inner Diameter | φ5mm |
| Minimum resolution | 0.01mA |
| output | 100 mV DC (full scale for each range) |
| Other features | Data Hold, Auto Power Off, One Push 0 Adjustment |
| power | AA alkaline battery×4 |
| Dimensions and Weight | Body: W78×H155×D32mm approx. 280g CT: W28×H113×D19mm approx. 80g |
| accessory | Battery, CT (CTP-05DC), Carrying Case |
| option | Recorder Output Code MR-004 Recorder side bug clip ¥2,200 (excluding tax) MR-006 Recorder side soldering finish ¥2,200 (excluding tax) |
